MaxxECU MINI Wiring Harness

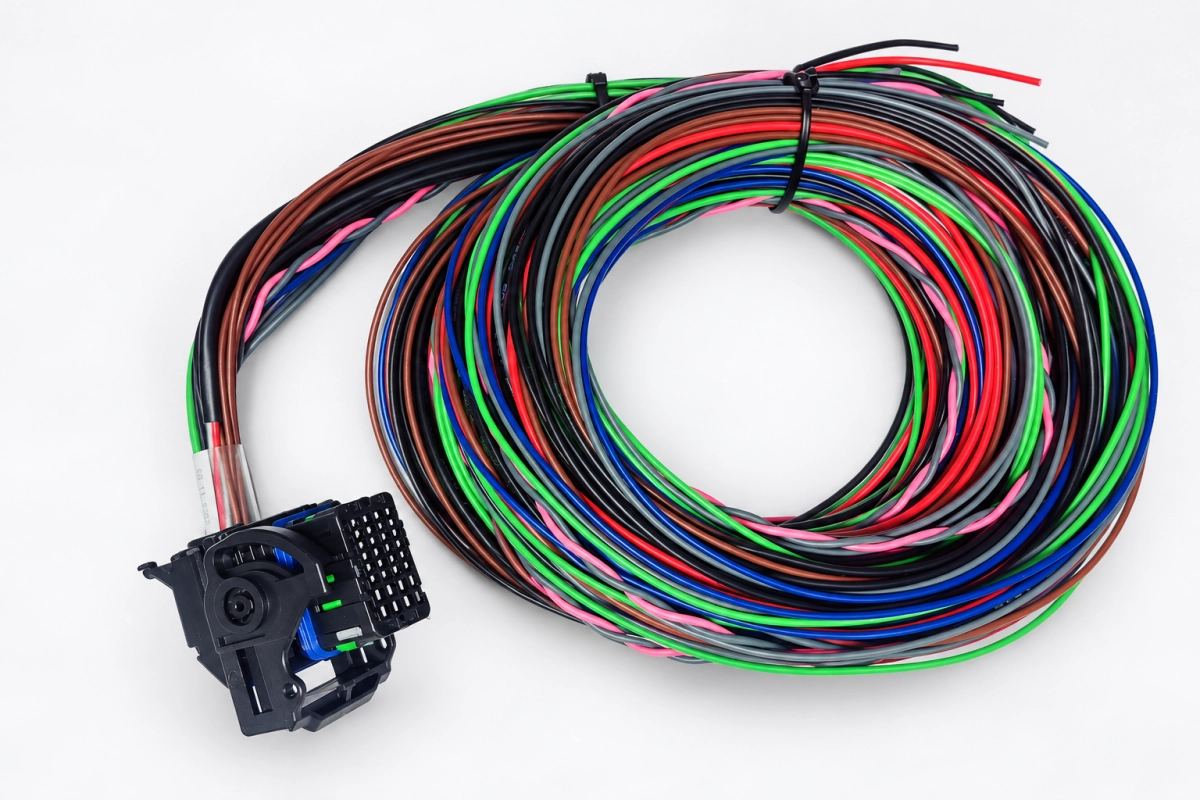

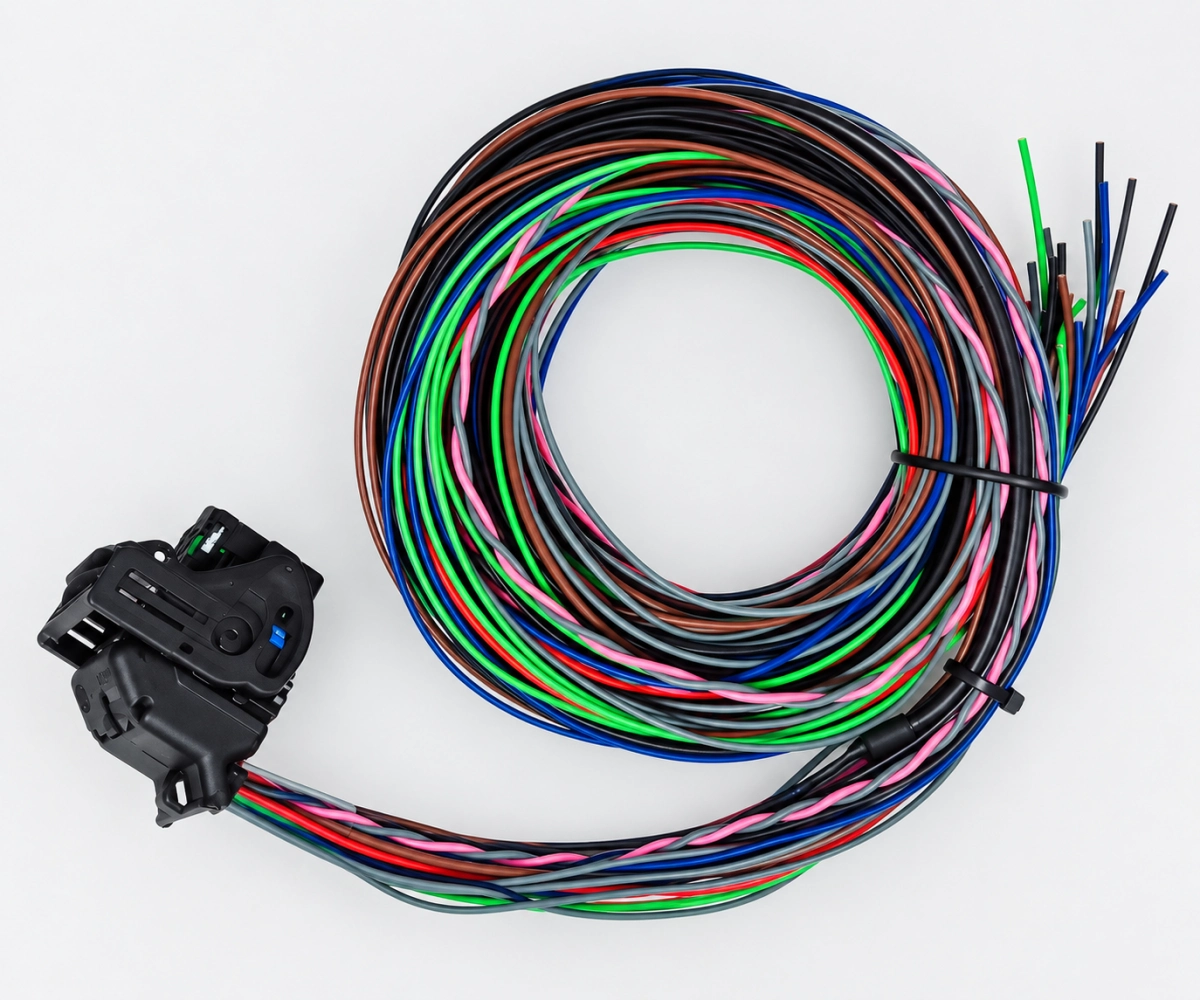

A separately available wiring loom for a MaxxECU MINI installation or harness replacement. The photographed item has an ECU-side connector and color-coded loose wire ends for a qualified installer to terminate to the vehicle.
Harness onlyECU-side connectorVehicle wiring requiredA harness-only quotation does not include the ECU controller, sensors, calibration or vehicle-side connectors unless they are explicitly listed. Confirm the exact quoted contents before ordering.
What this listing covers
MaxxECU MINI ECU wiring harness for wire-in projects
The MaxxECU MINI wiring harness is intended for builders who need an ECU-side loom to connect power, grounds, sensors, injectors, ignition and other required circuits to a confirmed MINI setup. It is not a universal plug-and-play vehicle harness. The connector and individual wire ends visible in the supplied photos require application-specific wiring and testing.
The official MaxxECU MINI uses a 32-pin main connector. The exact harness length, branch configuration, labeling, wire gauge and included terminals of the LikedLinking supply are confirmed with the quotation, rather than assumed from another seller’s specifications.
Order scope: choose a replacement wiring loom on its own, or ask us to review the loom as part of a wider standalone ECU project. A photo of a harness does not establish that an ECU is included.
Before wiring
Standalone ECU wiring harness: four fit checks
Identify the controller
Send a clear photograph of the MaxxECU MINI label, its generation or revision and the ECU connector face. Do not order only by the words “MINI harness.”
Match the documentation
Use the official pinout for that ECU revision. MaxxECU documents a CAN H/CAN L harness difference on some early MINI units; verify the actual harness before termination.
Plan the engine wiring harness circuits
List engine, injector and ignition arrangement, trigger inputs, sensors, required CAN devices, vehicle power distribution and desired auxiliary outputs.
Confirm loom length and loose leads
Compare cable length, wire-end preparation and any branch or connector requirements with the written quotation. A product photograph alone does not specify the supplied configuration.
Selecting the right loom
ECU wiring harness replacement versus a complete car loom
An ECU wiring harness replacement is chosen for the controller connector and its circuit assignment. It is not the same as replacing every cable in a car wiring harness. For this MaxxECU MINI product, the ECU-side connector and flying leads provide a starting point for a qualified technician to create the required engine connections. The engine-bay routes, fuses, relays, grounding points and any retained factory systems still need an installation plan.
If you need a custom ECU wiring harness, send a circuit list and specify whether you need loose leads, labeled branches, additional connectors or a fully terminated assembly. We will review the requested supply scope before quoting; no vehicle-specific plug-and-play fit or included accessories are assumed. The same approach applies if your search is for an aftermarket automotive wiring harness, but this page concerns the MINI ECU-side loom specifically.
What to provide for a wiring loom quotation
- ECU identity: exact MaxxECU MINI generation, label and connector photos.
- Application: vehicle, engine, injector and ignition arrangement, trigger type and retained factory ECU functions.
- Harness scope: desired length, loose or terminated ends, branch routing, connector requirements and quantity.
- Technical reference: the correct ECU pinout and the engine wiring diagram, with any prior modifications highlighted.
These details let us distinguish an ECU wiring loom from a general automotive wiring harness and quote the actual parts required for your installation.
Supply options
MaxxECU MINI wiring loom: harness only or project review
A standalone ECU wiring loom is useful when replacing damaged wiring, starting a new build or laying out a custom engine harness. Buyers searching for an engine wiring harness often need the complete vehicle-side assembly; this product is the ECU-side loom with loose leads, so the remaining automotive wiring must be planned for the actual vehicle.
- Harness-only inquiry: supply the MINI model and required loom specification.
- Connector check: compare ECU connector, keying, pin count and housing with the supplied item.
- Custom wiring review: provide a circuit list and the vehicle or engine diagram to discuss preparation and termination requirements.
- Full ECU inquiry: ask separately whether a MaxxECU MINI controller and any accessories can be sourced; controller availability is not implied by this harness page.
The maker’s official ECU pinout reference is a useful starting point, but a qualified installer should verify the controller revision and every circuit on the actual vehicle.
Buyer questions
MaxxECU MINI wiring harness FAQ
Does this MaxxECU MINI wiring harness include the ECU?
No ECU is shown as included. This listing is for the wiring harness; request a separate quote if you also need a MaxxECU MINI controller.
Is it plug-and-play for my car?
No vehicle-specific plug-and-play fit is claimed. The loose wire ends must be assigned and terminated for your vehicle and chosen MINI configuration.
Can I buy the MINI harness separately?
Yes, ask for a harness-only quotation. We will confirm current availability, length, connector revision and exact supplied parts before an order.
Will it work with an older MaxxECU MINI?
Compatibility depends on the controller revision and the harness pinout. Please send clear connector and ECU label photos; early MINI harness CAN wiring may differ from later documentation.
How long is the cable?
The product photographs do not establish a measured cable length. Send your required length, and we will confirm the actual supplied loom specification with the quote.
Request a precise quote
Request a MaxxECU MINI wiring harness quotation
Include the ECU revision, connector photos, vehicle and engine, required harness length, wiring diagram if available, and whether you need the harness alone. We can then check the MaxxECU MINI wiring harness configuration and quote the matching scope.
